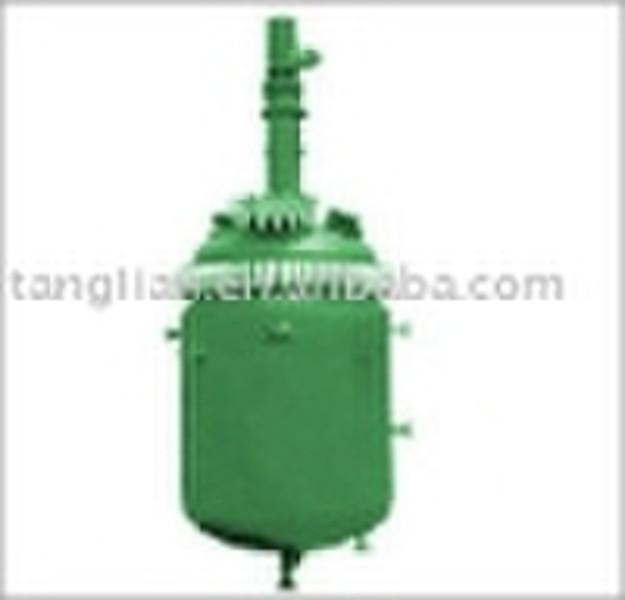

glass lined reactor

glass linedreactor 1. Design pressure: 0.2-1.0Mpa 2. Design temperature: 0 200 temperature 3. Operating temperature: 0-180 temperature 4.Glasslayerthickness:0.8 2.0MM 5. Capacity: 50 - 30, 000L 6. Agitator: We have many kinds of agitators for the user to choice 7. Speed reducer: Vertical speed reducer 8. Axis seals: Padding seal (0.2Mpa) Single mechanical seal (0.4Mpa) Double mechanical seal (0.6Mpa, 1.0Mpa) 9. Resistance to sharp temperature variation: Cool shock 110 temperature Hot shock 120 temperature 10. If the design pressure of the tank surpasses 0.6Mpa, this kind of glass lined reactor needs specially to order. Accessaries:motor,reducer,flush valve,manhole,flange,thermometer pocket,and so on crrosion resistance It can resistant the corrosion of inorganic acid ,organic acid,impregnant and alkalescence. Glass lined equipment is widely used in the petroleum, chemical, light industry,pesticide,pharmacy,dyestuff,the food processing industry and scientific research,etc
